Settings

The Settings section controls everything about your device and the desktop application itself — PIN, passphrase, label, signing policies, firmware updates, and the local REST API.

Application settings

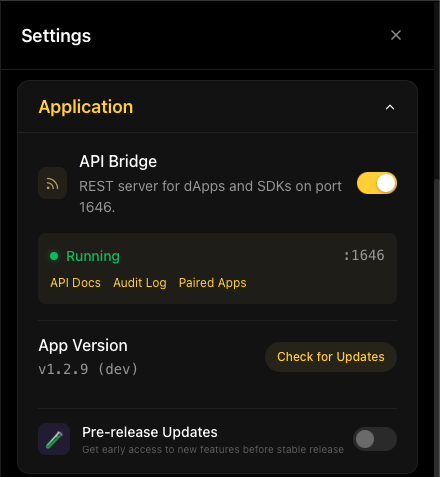

Application settings

Application settings control the desktop application itself:

  • API Bridge — toggles the local REST server on http://localhost:1646 that lets dApps and SDKs connect to your device
  • App Version — current version with a “Check for Updates” button
  • Always on Top — keeps the Vault window in the foreground when a signing request arrives
  • Pre-release Updates — opt in to beta builds before stable release

Pair Mobile Device

Click Pair Mobile to sync your public keys to the KeepKey mobile app. Private keys never leave the device — only public keys are shared, so the mobile app can show balances but cannot sign.

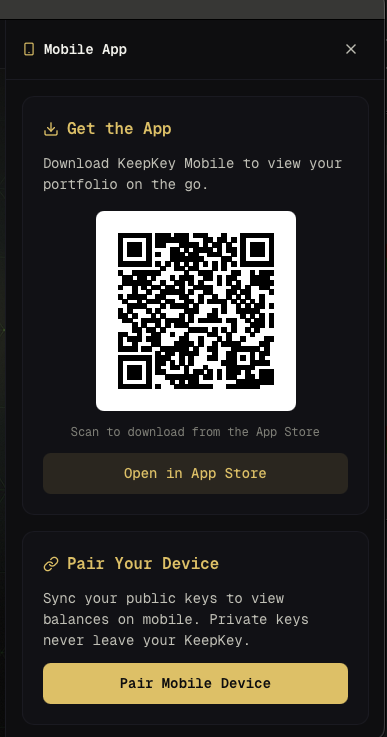

Mobile app download and pair device panel

After your KeepKey derives the public keys, a one-time pairing code and QR code appear. Open the KeepKey mobile app, tap Pair via QR Code, and scan it. The code expires in 15 minutes and is single-use.

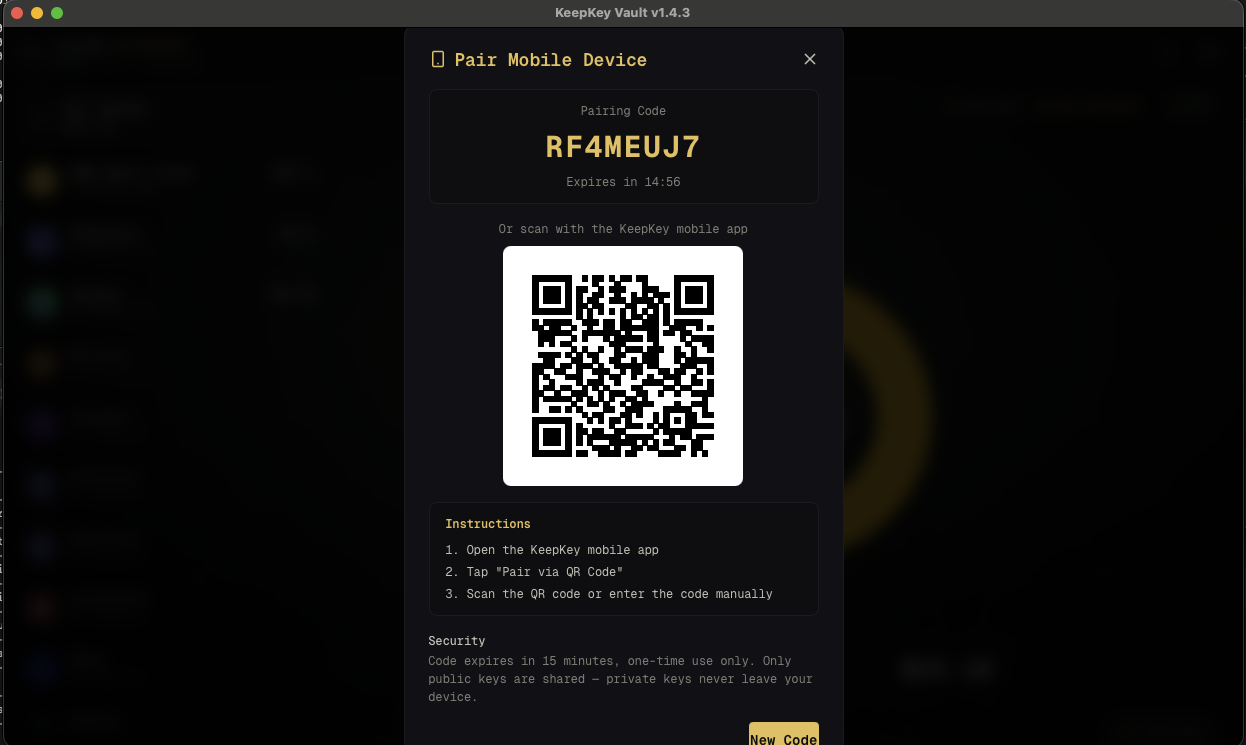

Pair Mobile Device — pairing code and QR

Device overview

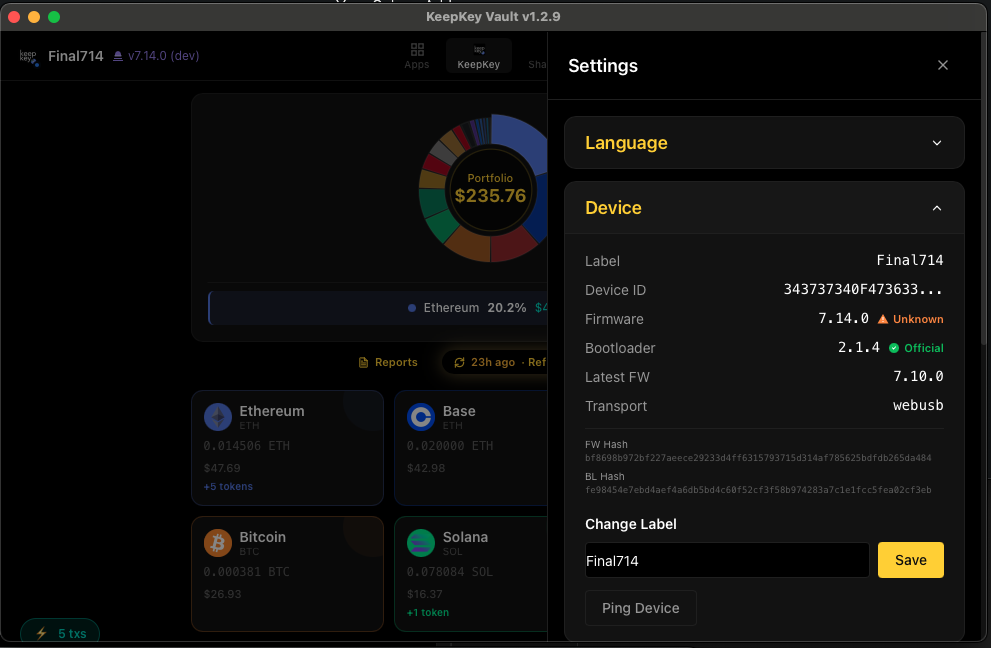

Device overview

The device overview page shows:

  • Model — your KeepKey model
  • Firmware version — current firmware, with a button to update if a newer version is available
  • Label — a name you can give your device (useful if you have more than one)
  • Features enabled — which security features are on

Security

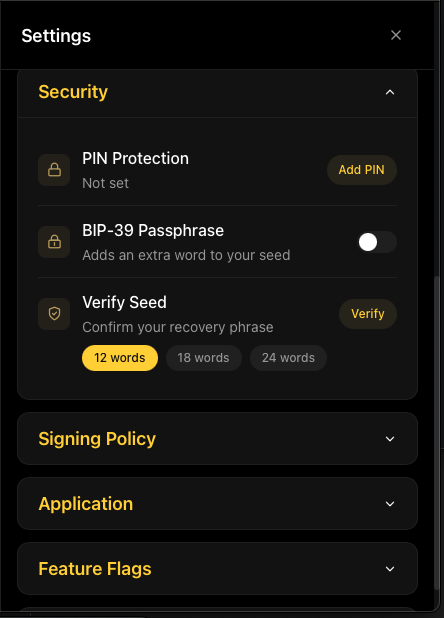

Security settings

PIN

You can change the PIN here. The scrambled-grid entry still applies — see PIN for how it works.

Passphrase

You can enable or disable passphrase protection. Passphrases create separate hidden wallets. Do not enable this unless you understand the risks — a forgotten or mistyped passphrase permanently loses access to the hidden wallet.

Auto-lock delay

How long the device waits (with no activity) before requiring the PIN again. Shorter is more secure, longer is more convenient.

Feature flags

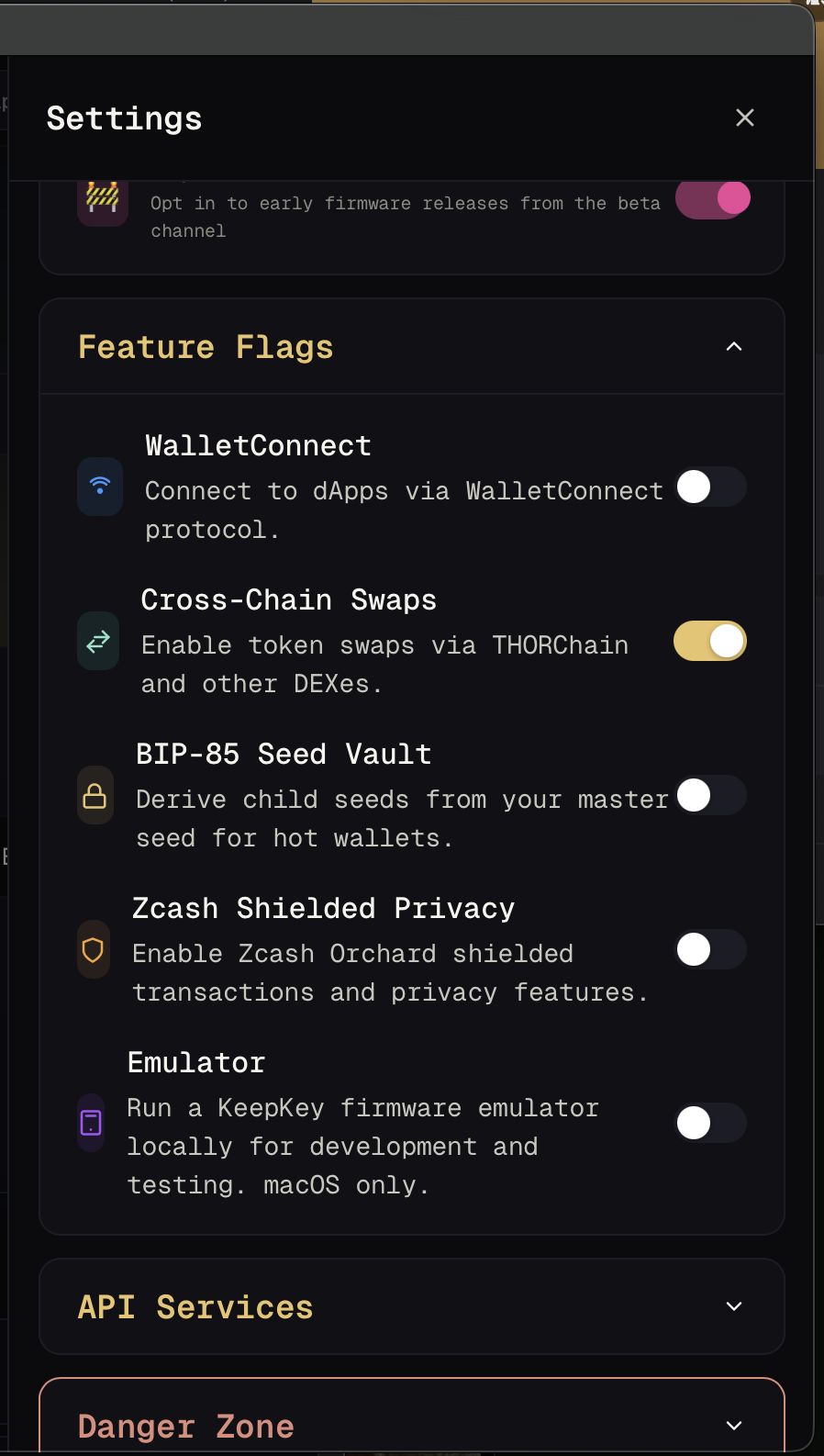

Feature flags

Feature flags let you enable or disable optional capabilities:

  • WalletConnect — connect to dApps via the WalletConnect protocol
  • Cross-Chain Swaps — enable token swaps via THORChain and other DEXes
  • BIP85 Seed Vault — derive child seeds from your master seed for hot wallets
  • Zcash Shielded Privacy — enable Zcash Orchard shielded transactions and privacy features
  • Emulator — run a KeepKey firmware emulator locally for development and testing (macOS only)

Signing policy

Signing policy

Signing policies let you require extra confirmation for certain operations:

  • High-value confirmations — require a longer button press for large transactions
  • Unknown contract warnings — show extra warnings when signing with dapps that haven’t been verified
  • Experimental chains — gate access to chains that are still in beta

Most users should leave the default policies on.

API servers

API servers

The API bridge is the local REST API (on http://localhost:1646) that lets external apps connect to your device. When you enable it, external apps running on the same machine can pair with the desktop application and request addresses, balances, and signatures from your KeepKey.

This is how the browser extension, the mobile app (over QR-code pairing), and any custom app built with the SDK communicate with your device.

Why it’s off by default

Because every app that pairs gets the ability to request signatures from your device. The signature request still has to be approved on the device itself — an external app cannot silently move funds — but leaving the API permanently enabled means:

  • Any malicious app running on your computer could pair and flood you with signing prompts.
  • Any process that tricks you into clicking “approve” can steal funds.
  • The attack surface of your wallet goes from “just the desktop app” to “anything on your computer that can talk to localhost:1646”.

By keeping the API off by default, the desktop application has a single narrow interface: the one you’re looking at. No other process on your computer can reach the device.

When to turn it on

Turn the API on when you want to:

  • Use the browser extension to connect your KeepKey to dapps like Uniswap or OpenSea.
  • Pair the mobile app so you can view your portfolio on the go.
  • Run a custom script or trading bot built with keepkey-vault-sdk.
  • Test an integration you’re developing against the REST API.

Turn it off when you’re done.

Pairing and bearer tokens

When an app pairs with the API, you approve the pairing in the desktop application (showing you the app name and icon), and the app receives a bearer token. It uses that token on every subsequent request.

You can view, revoke, or re-pair individual apps here. Revoking a token takes effect immediately — the next request from that app will fail.

Danger zone

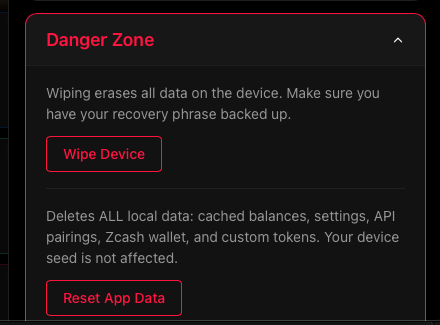

Danger zone — Wipe Device and Reset App Data

The danger zone contains two distinct operations — read the difference carefully:

  • Wipe Device — erases all secrets from the KeepKey hardware. After this, your only way back is the recovery phrase. Do not wipe unless you have confirmed your phrase is correct and safely stored. Requires physical confirmation on the device.
  • Reset App Data — deletes all local app data only: cached balances, settings, API pairings, Zcash wallet state, and custom tokens. Your device seed is not affected. Use this if the desktop app is in a bad state and you want a clean slate without touching the device.

If you are not sure which to use: Reset App Data is safe and reversible (the device keeps its keys). Wipe Device is permanent without your recovery phrase.
